Saab 9-5 Aero wagon rescue

Breaking this update into a few posts.

First, there was the CEL crisis.  We have had a CEL for years.  MAF mismatch, usually a vacuum leak.  Literally everything that could be related was checked or replaced as we worked the FSM diagnostic tree.

• There was a massive vacuum leak at the throttle body.  The TB and intake were replaced and re-sealed.
• We replaced every vacuum line/hose on the car.
• New intercooler and silicone hoses.
• MAF coupler and MAF.
• Cobra pipe.

The car sometimes took two tries to start cold, but it made great power and fuel economy.  Our trusted mechanic was stumped, we were stumped.

CRISIS: Missouri has OBD-based emissions testing.   Doesn't matter what shows up at the tailpipe (the don't even sniff it), a CEL fails the car.  Our AR tags were expiring, MO tags urgently needed.  In desperation, we played a hunch and bought another throttle body.

Success!  We hate front license plates but we made the deadline and the wagon is now registered and tagged in MO.

Winter was closing in.  The fall colors told us it was time to address the heater box/blend door situation once and for all.  Truthfully, our epoxy putty fix would have worked if we'd showed a little restraint - the excess putty was causing the DS blend door to bind.  But the air distribution control had also failed.  There was no air to the defroster vents, ever.

We bought a second-hand heater box and set about replacing every replaceable component: AC evaporator core, orifice, blend door motors, heater core, everything.

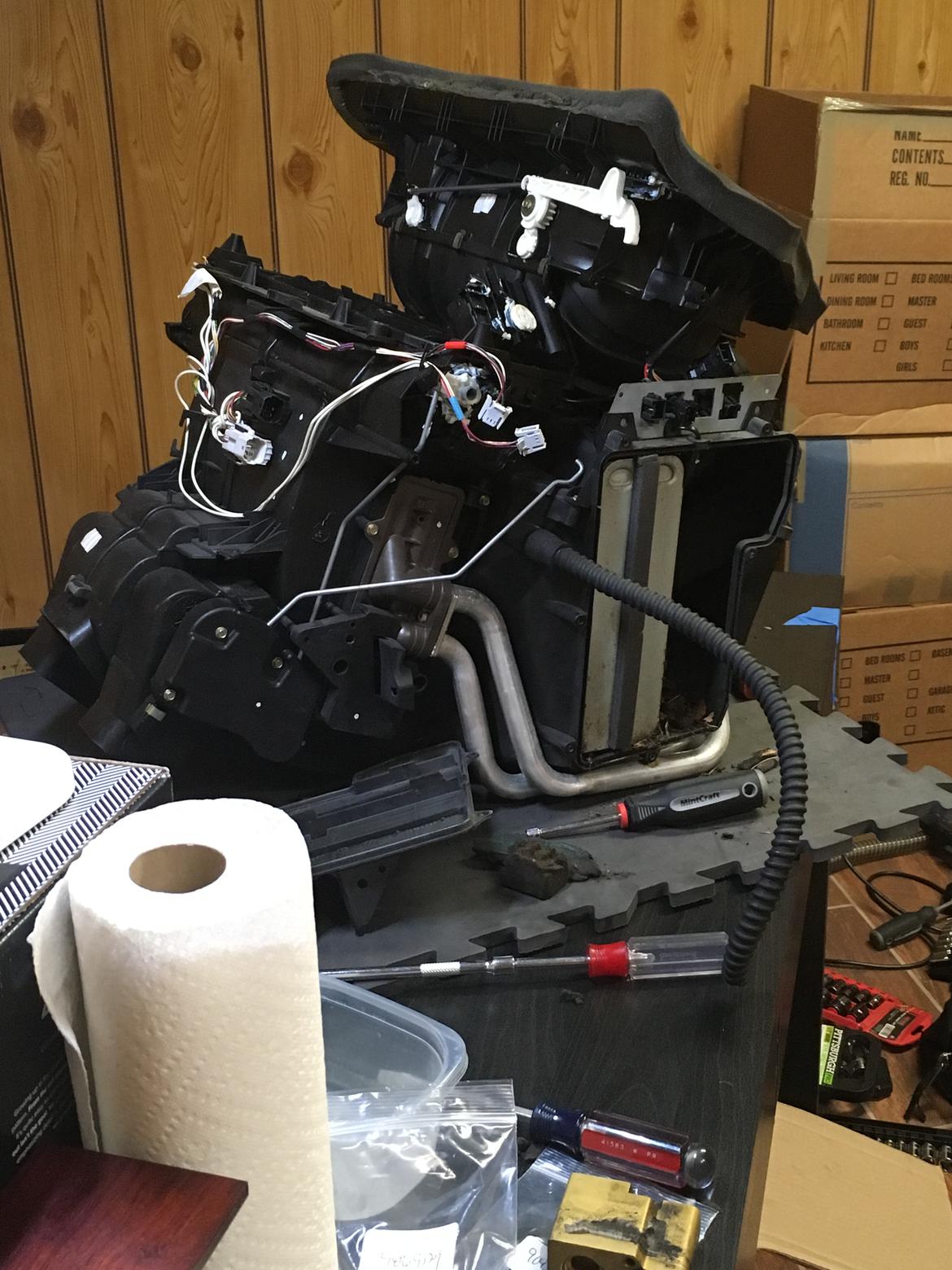

Here's the replacement box on the bench:

Trivia: know what that long corrugated rubber tube does?  Directs cold air from the AC to the glovebox to keep your ham sandwich, can Coke, maps, registration, owner's manual and presumably gloves cold in the summer months.  So thoughtful.

The blend door arms weren't broken - yet.  So, we re-sleeved them.  This is a job you only want to do once.  Period.

An intact blend door arm:

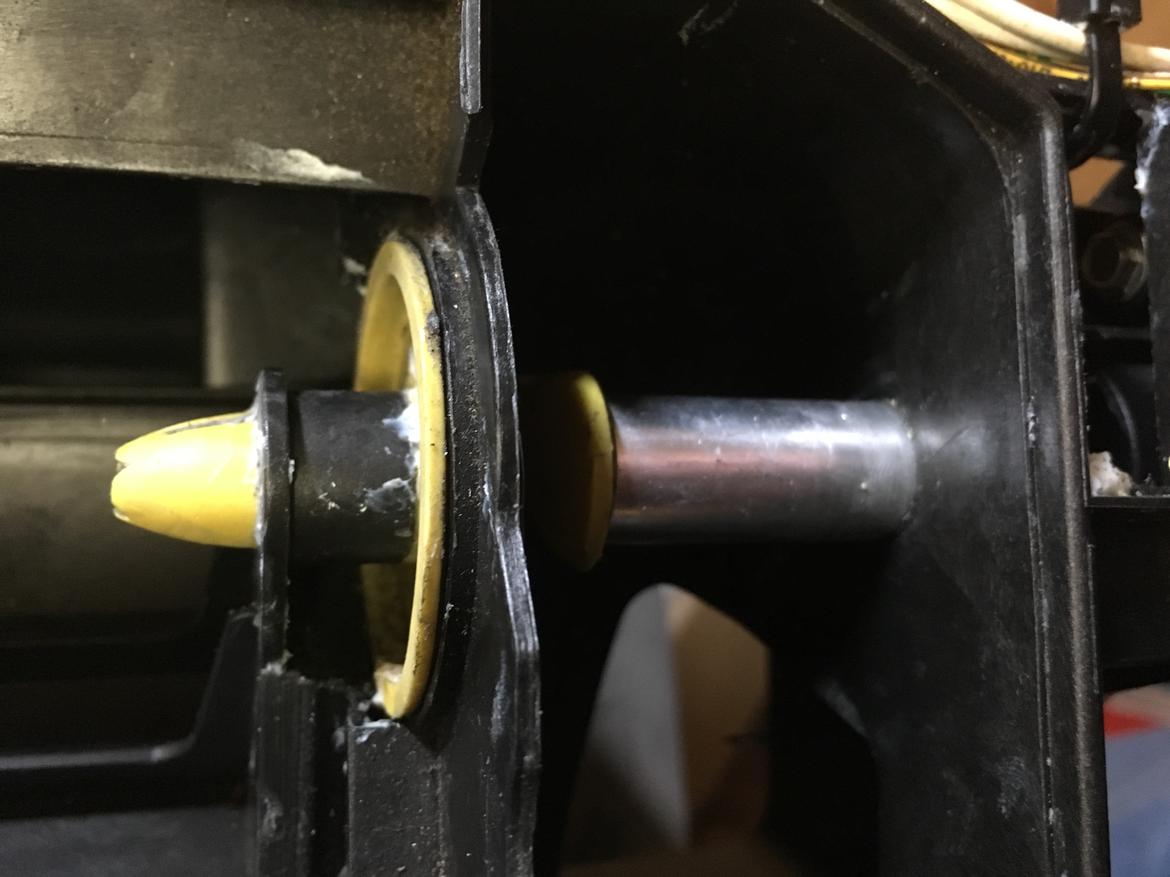

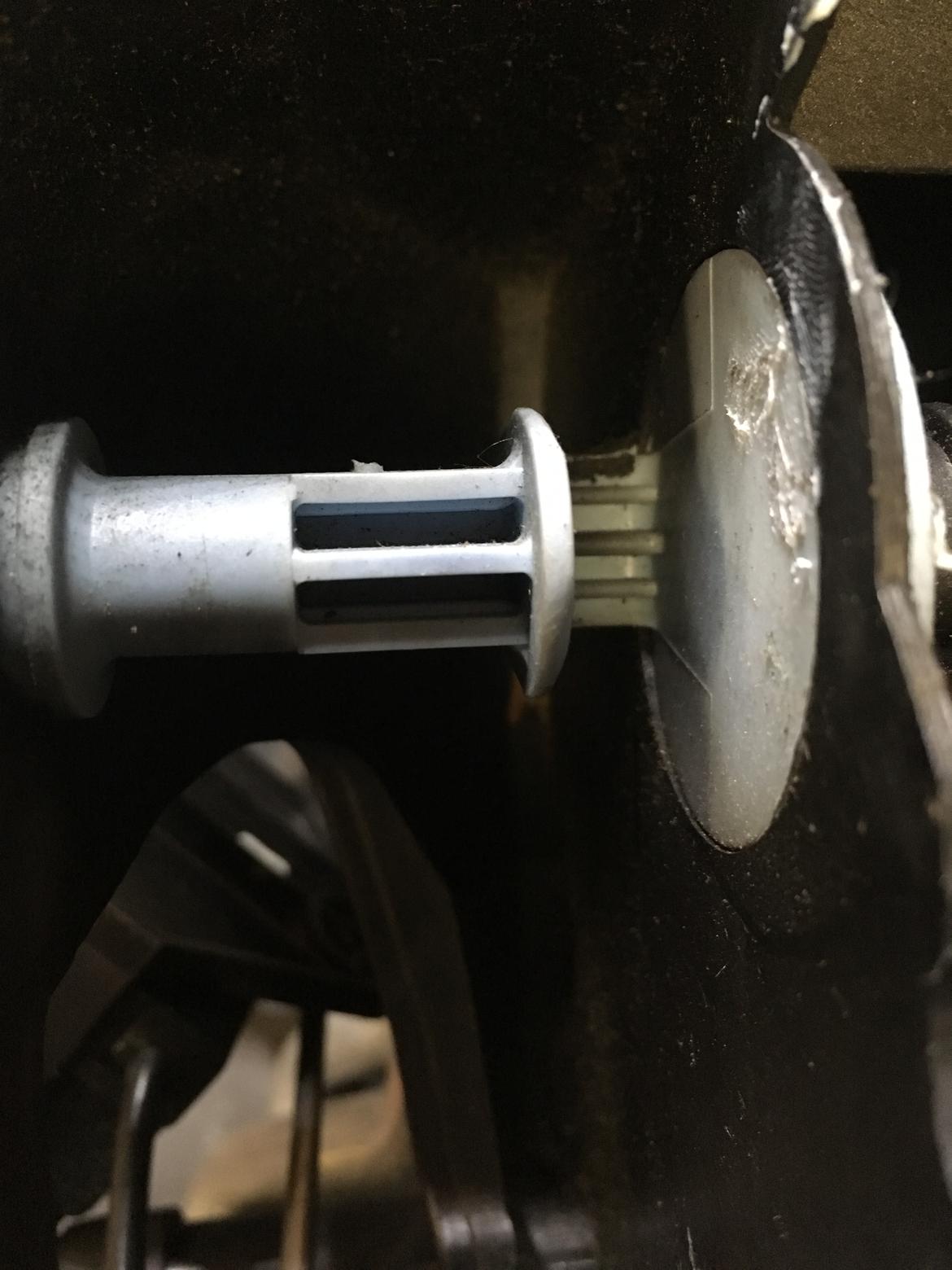

We dremeled the arms in half and sleeved them.  A door arm with repair sleeve:

This is why you can find otherwise-decent Mercedes for sale cheap, "Needs AC repair."  The cars are almost built around the heater box, and the evaporator core is integrated therein.

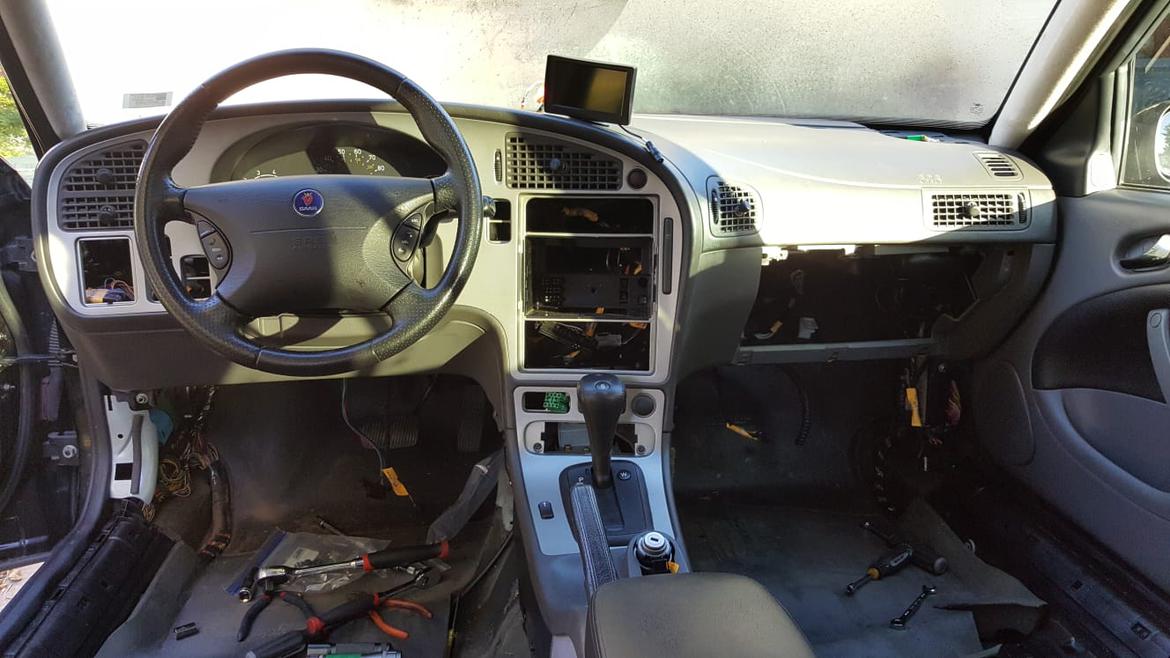

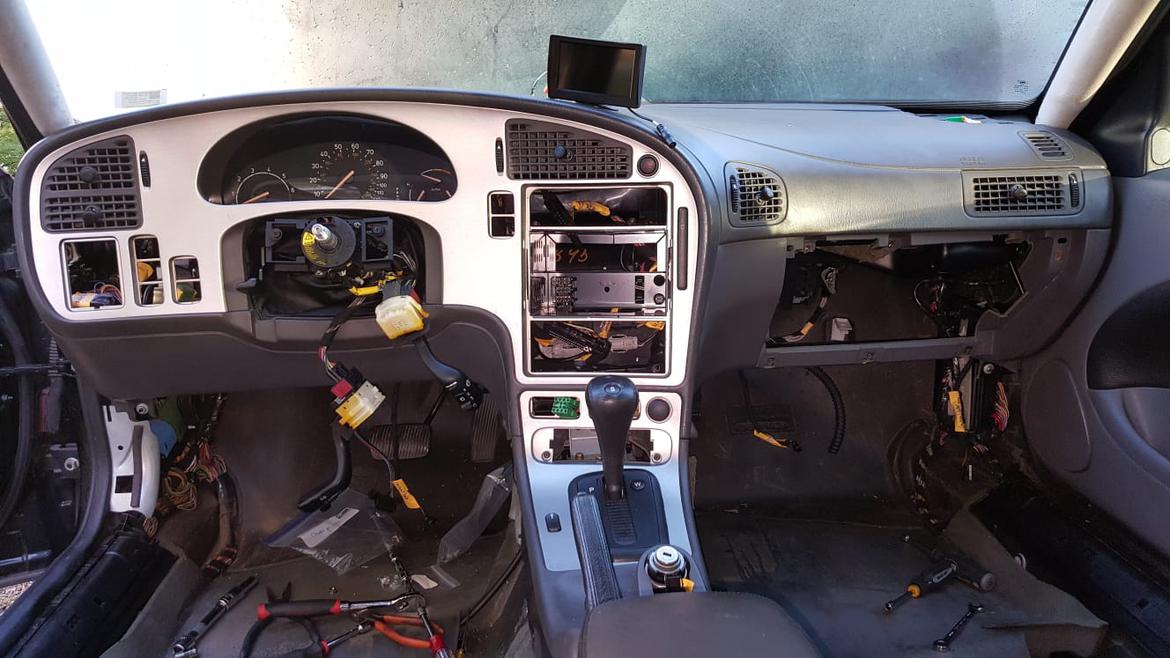

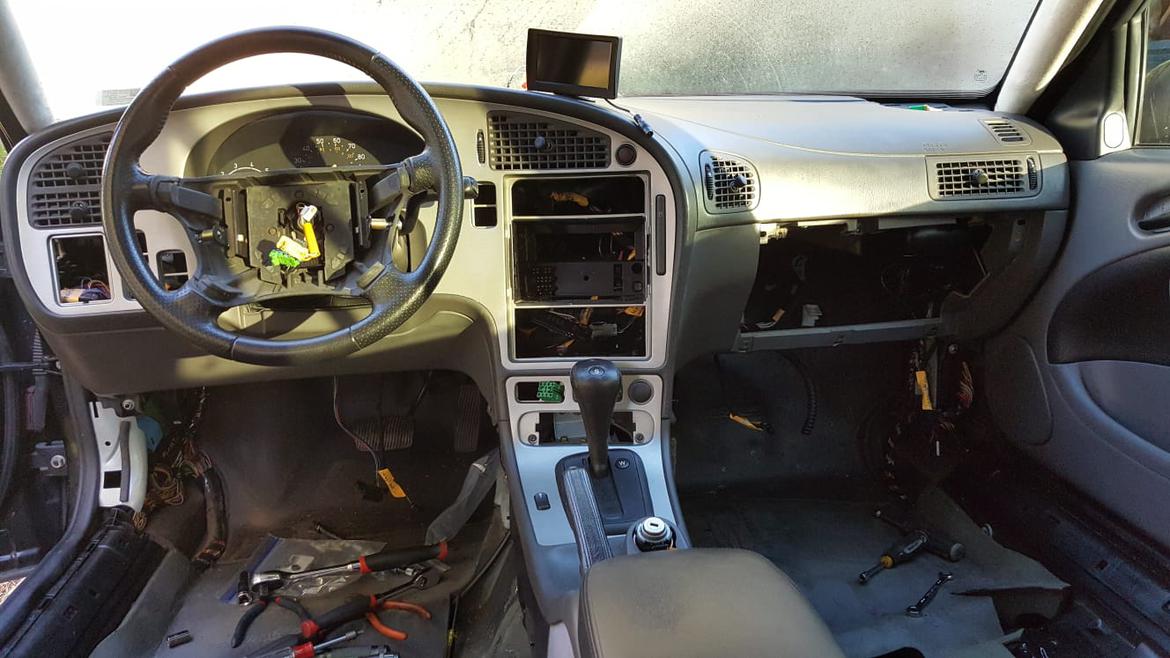

Remove speakers, climate controls, radio, switchgear et al, then carefully pull the dash skin.

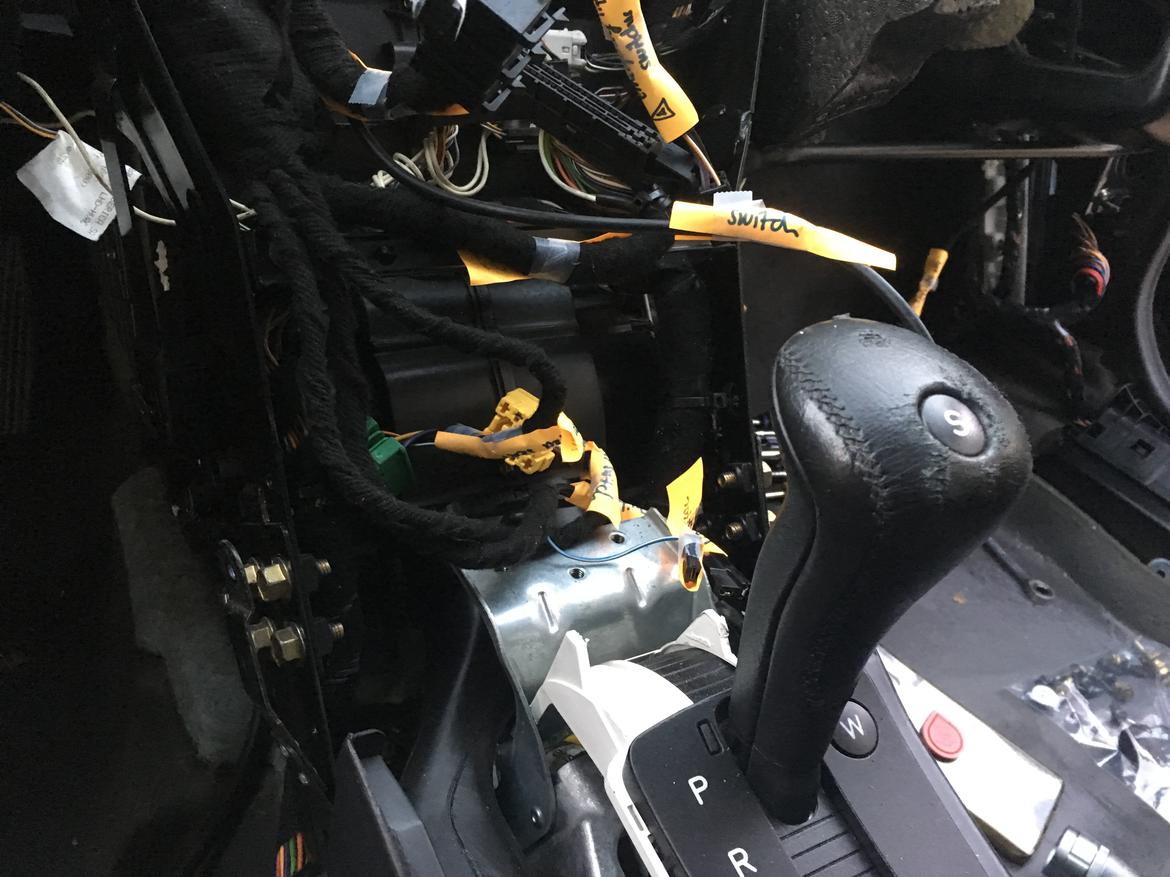

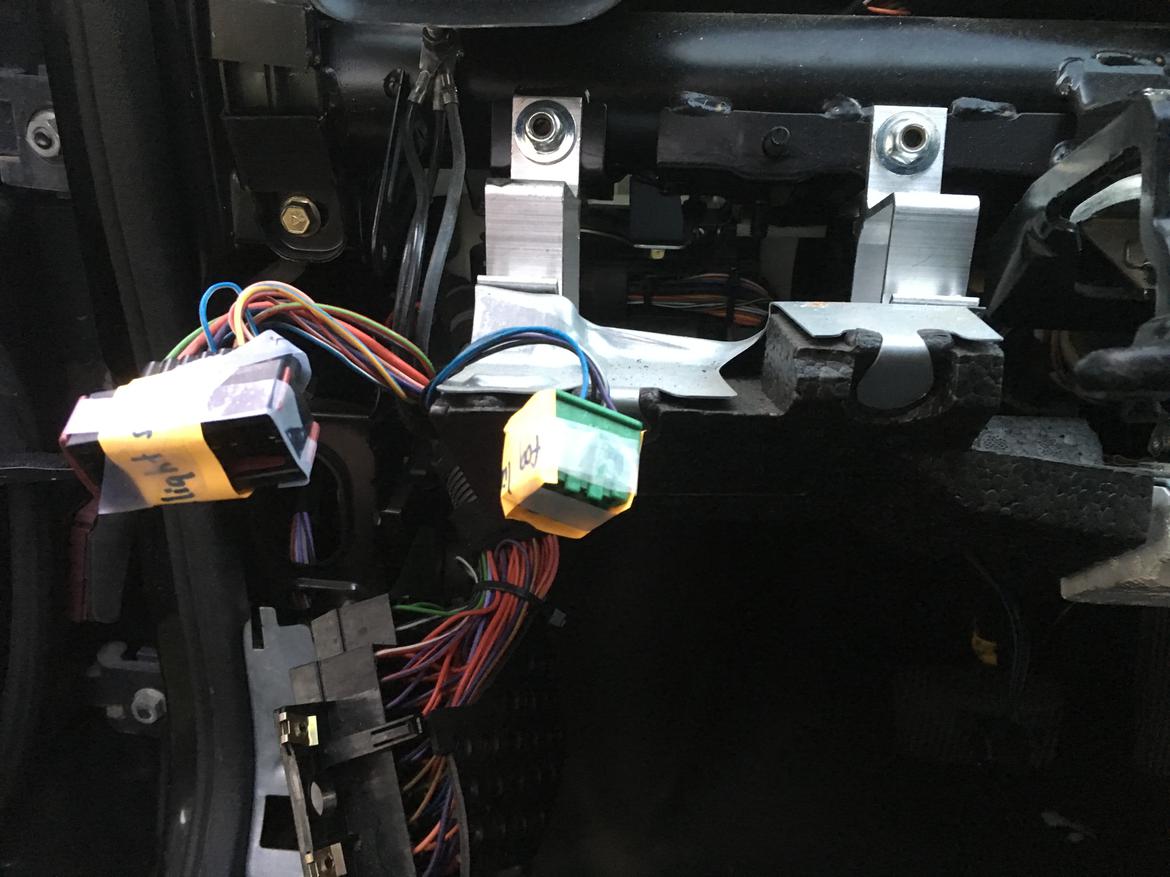

Label all the things.

Pro tip: leave the key in the ignition and select the lowest gear.  The shifter handle causes clearance issues with the box.

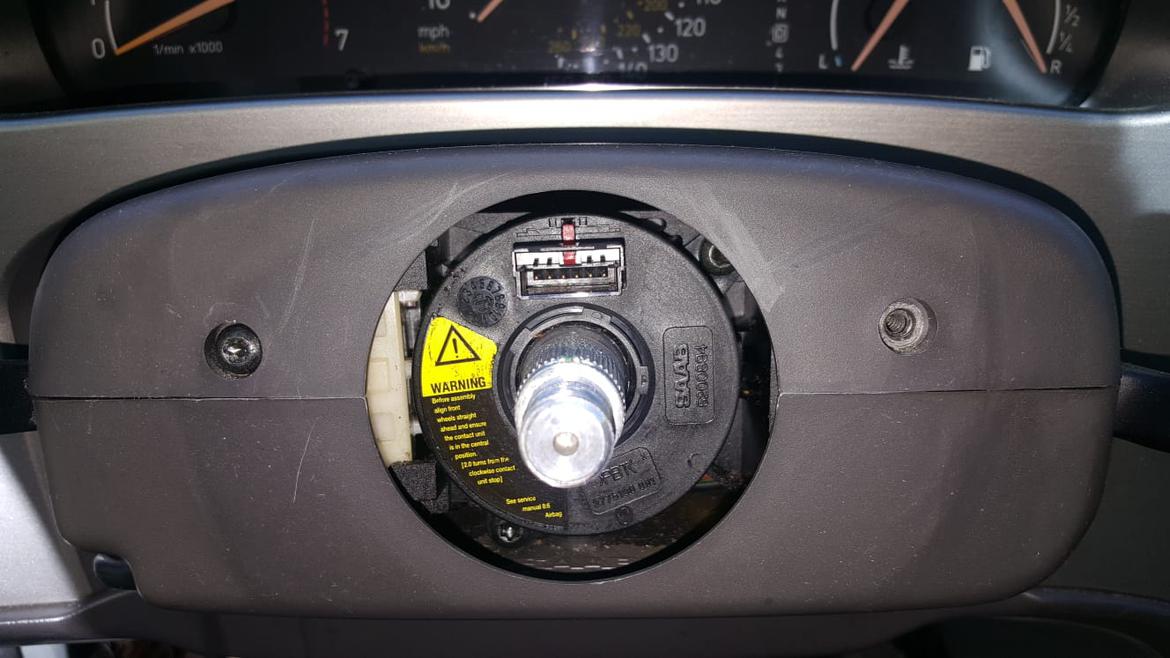

Yes, the steering wheel has to come out.  So do the seats.

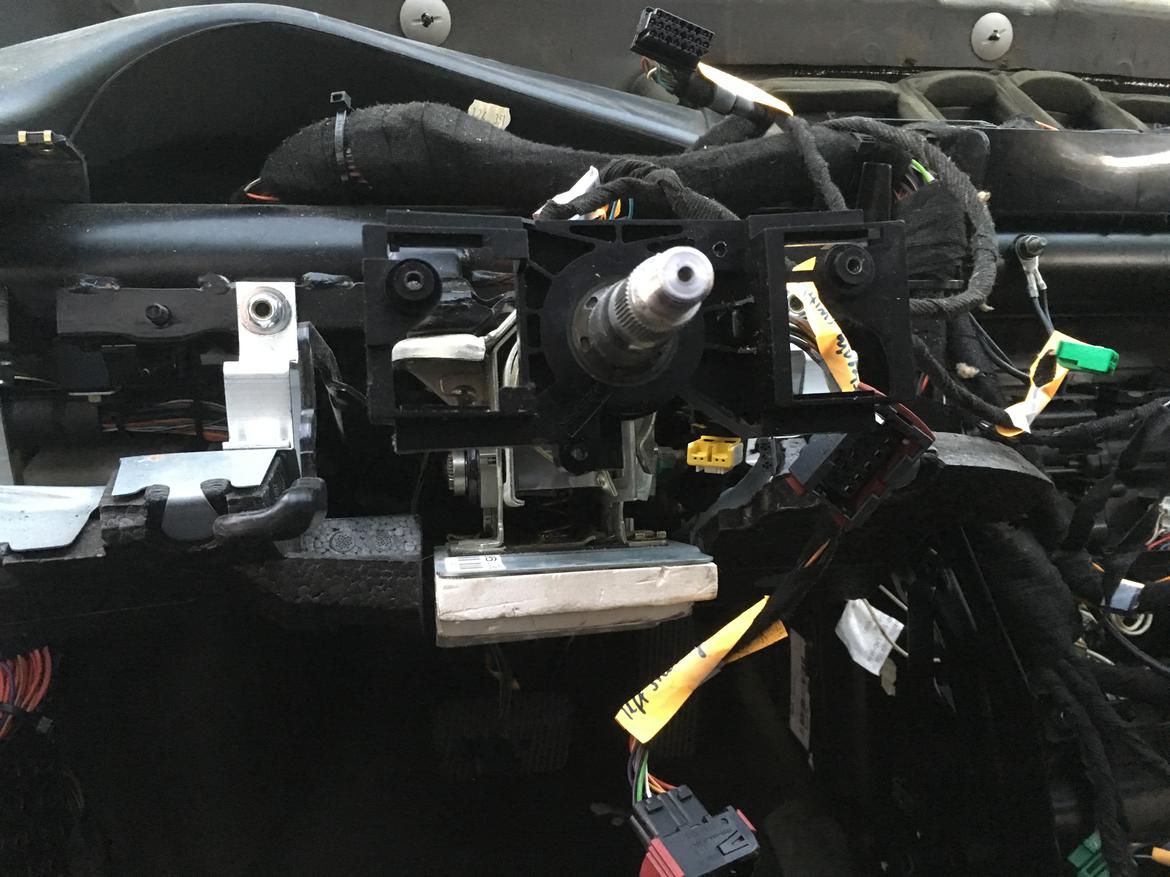

The steering column is fiddly, BTW,  Deploy patience mode.

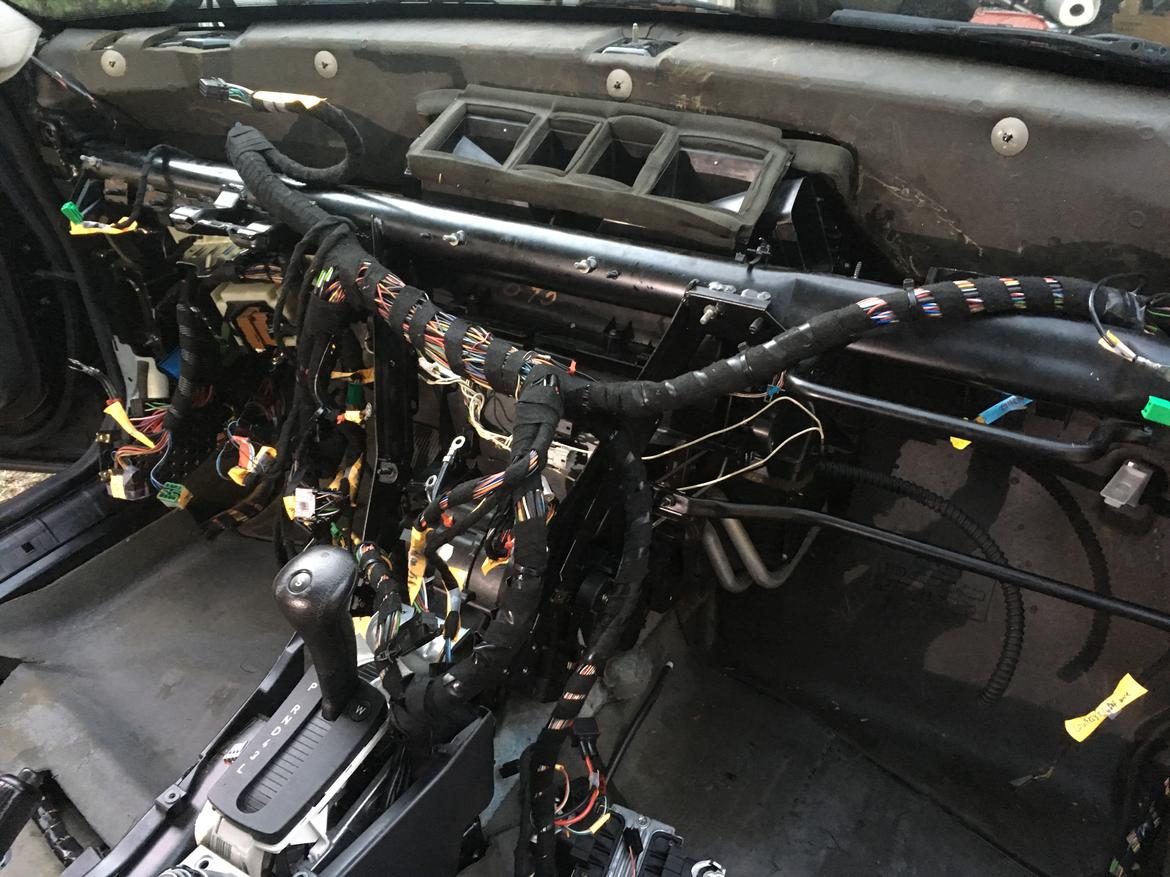

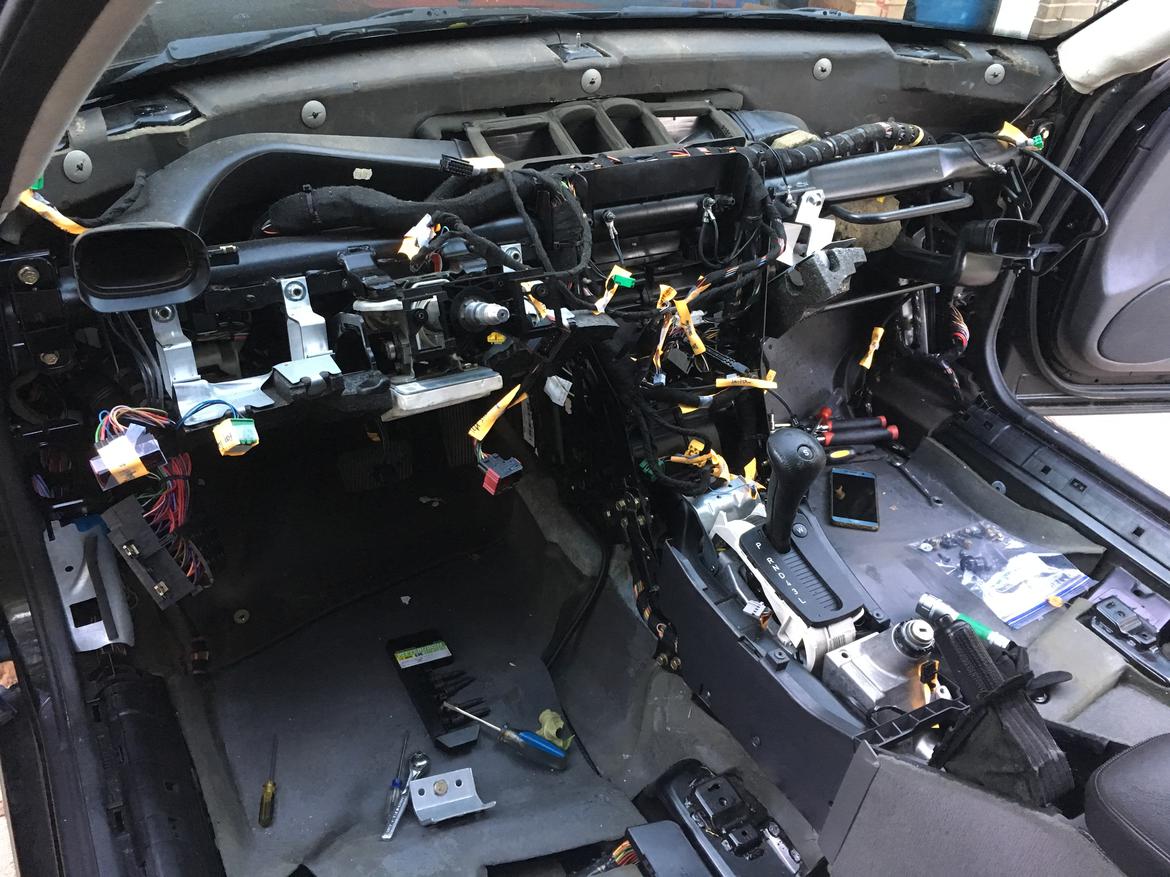

Right about here, you may have a twinge of anxiety:

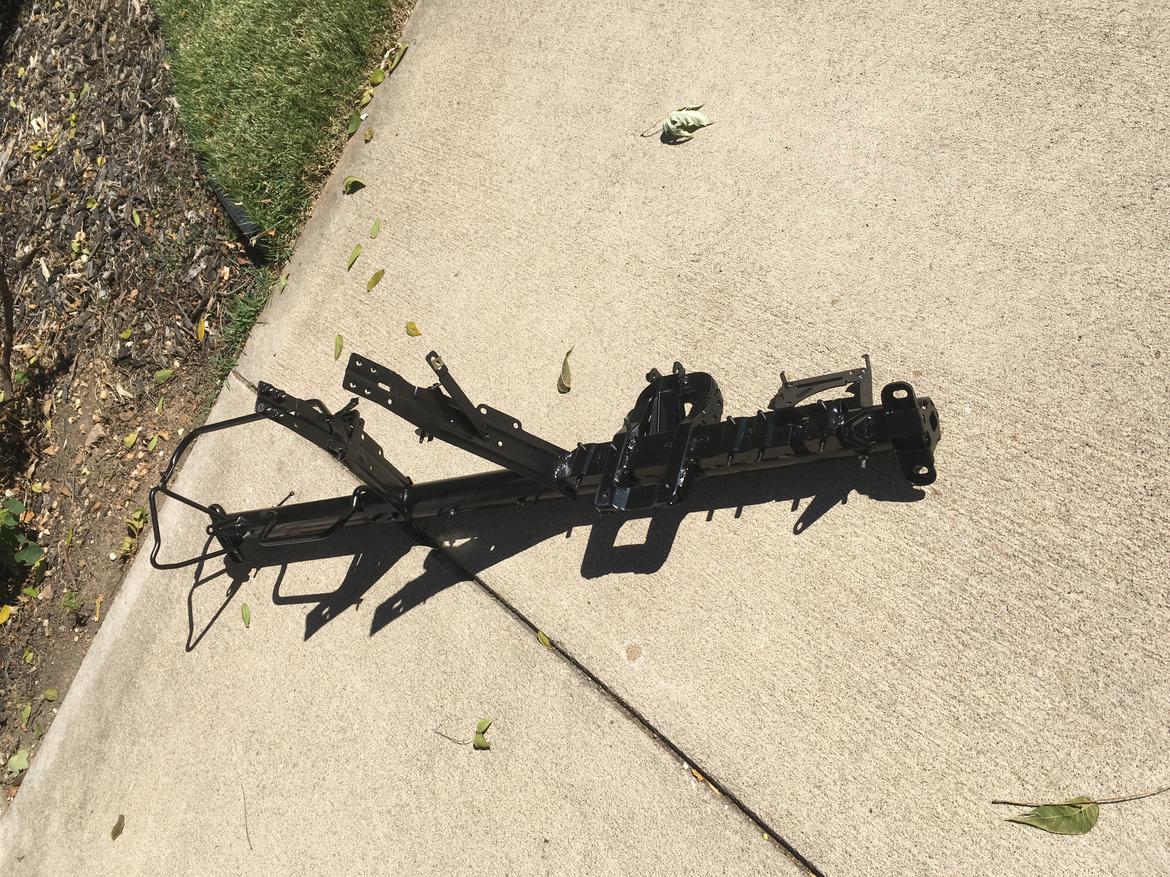

That black sort-of-tubular-but-flattened-in-places bar is the dash brace.  You'll be taking it out, too

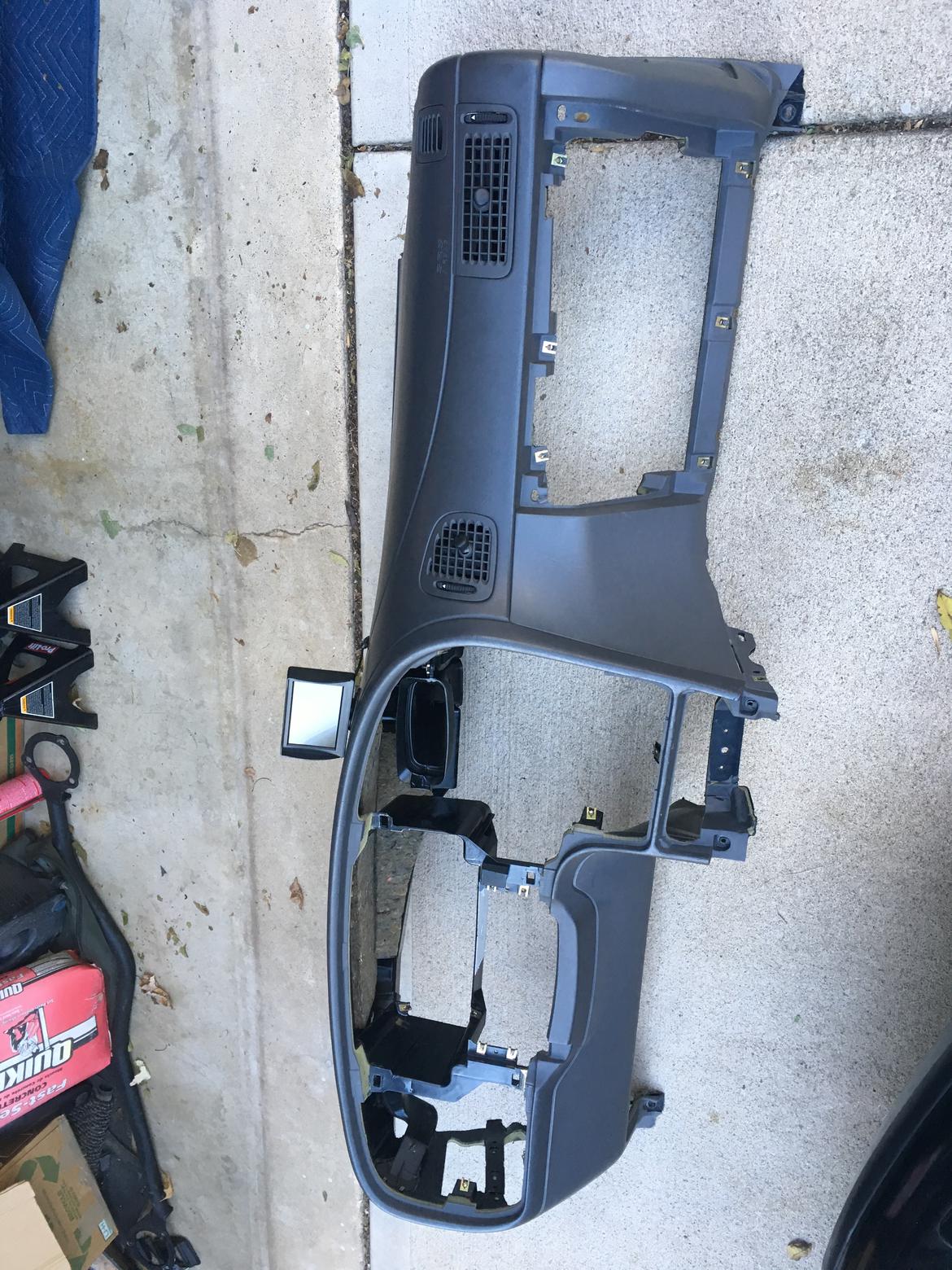

And it's out.

Have some towels around, a couple of fl oz of coolant will spill when you free the heater box.

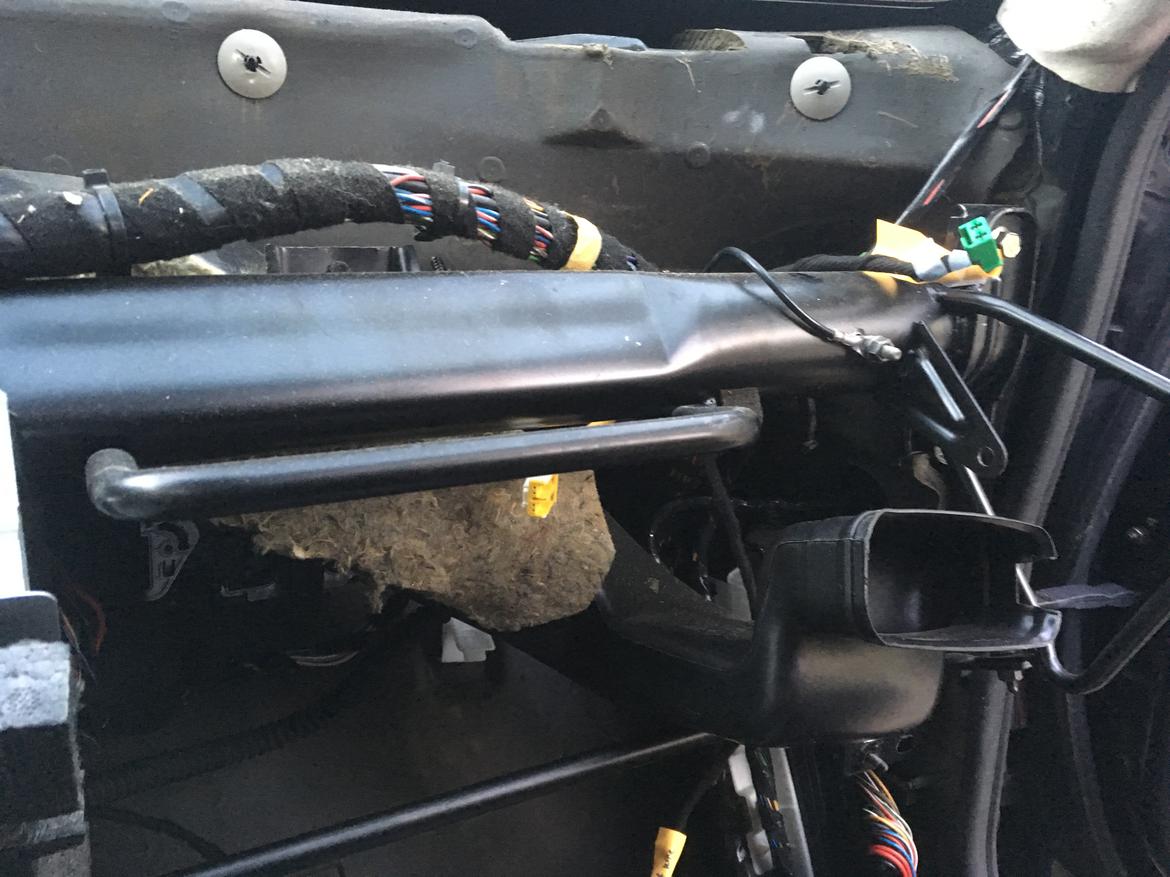

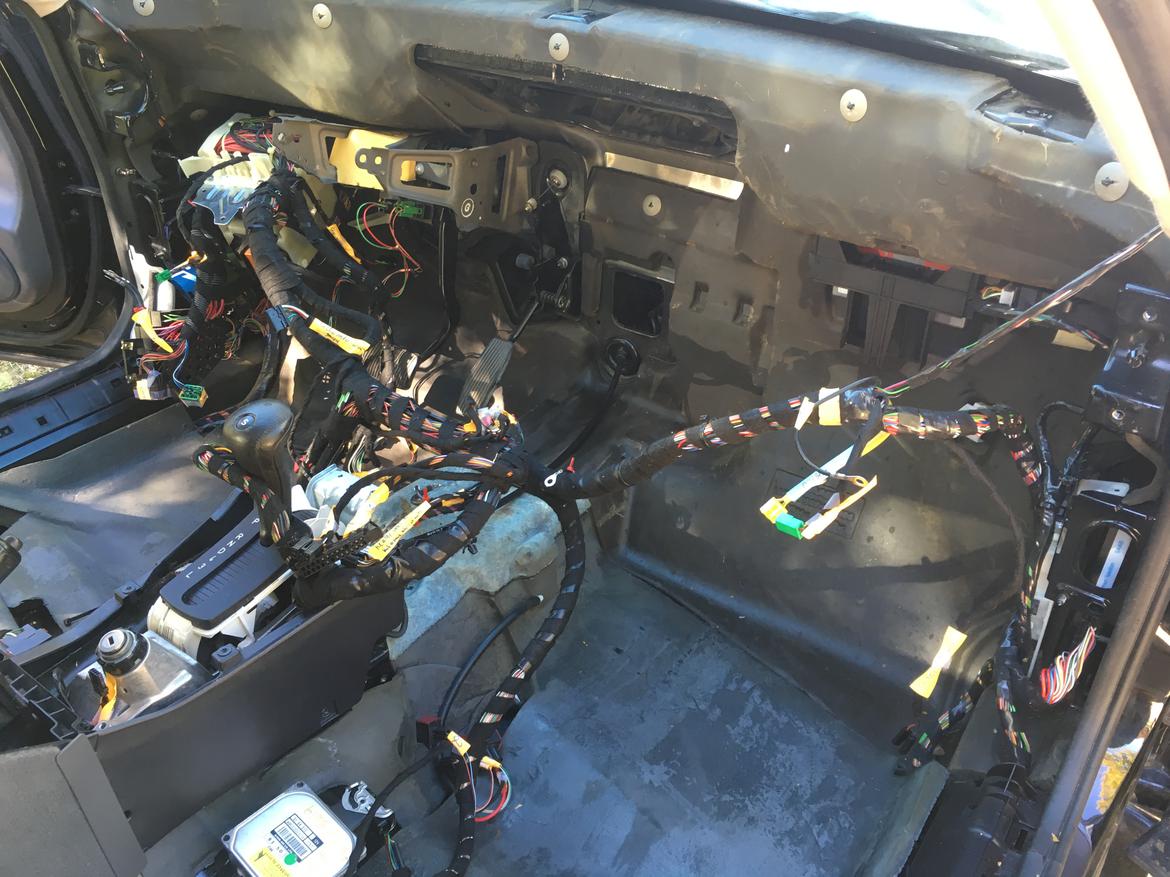

If you didn't have a moment of anxiety before, you would be forgiven for having one now.

Along the way there was evidence the dash had been out before: missing fasteners, mis-routed wiring  and the like.  But the heater box itself gave unimpeachable testimony that someone had been here already.

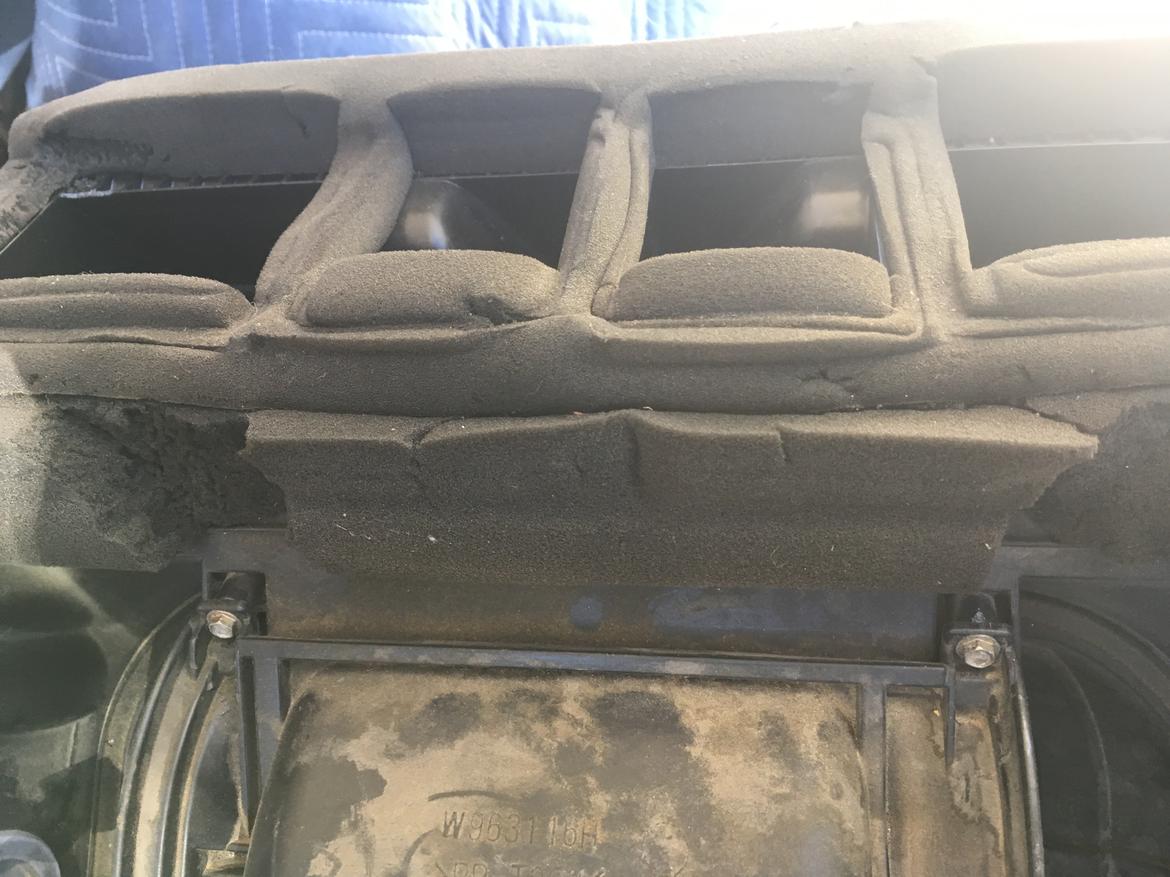

If you look at the insulation on the horizontal axis below the four openings, you see it has been pulled away at the far left and right.  This is for access to fasteners.  There was also a glued-shut keyhole in the body of the heater box.  We surmise from its location there was a (failed) attempt to access the driver side blend door.

Also, the box is supposed to bolt to the firewall in three places near the expansion valve and where the coolant hoses attach to the heater core.  Our box was just sitting in place.  This pic shows two of the three fasteners back in place when we installed the new box

And we dunno how so many made their way past the cowl cover, but the blower box was full of leaves.  Huh?

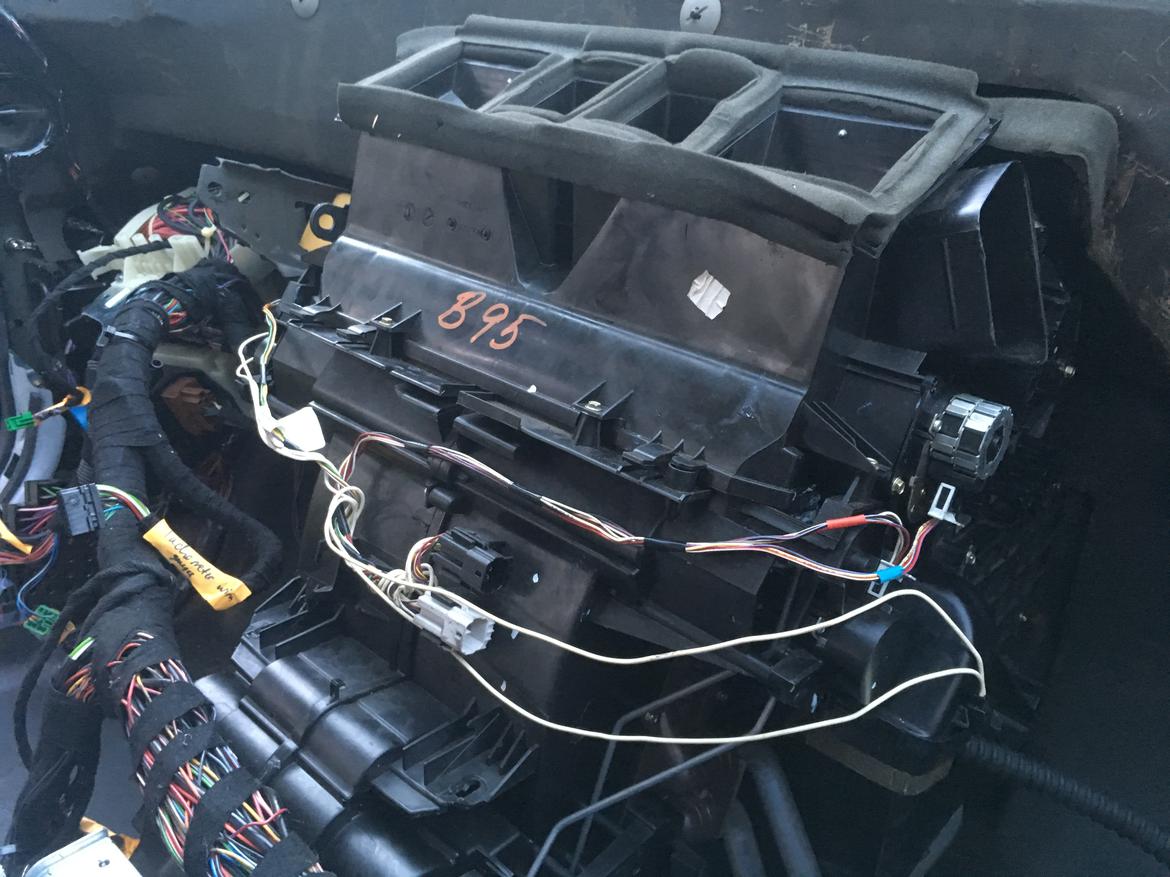

New box is in position.

Putting everything back where it belongs:

Putting her back together.

Any shop that charged us less than $2k in labor would have lost money on this repair.  We had about 30 hours in it overall from draining the coolant and disconnecting the battery to firing her back up and burping the cooling system.

This one was a welcome win.  Biggest problem encountered: an over-tight torx head seat bolt we stripped trying to take out.  Biggest surprise: we still have an error code - driver side blend door out of range.  It's pulling our leg, though.  Everything works perfectly - hot, cold and every distribution mode.

What's next?  I'd like to say a healthy break from repairs and maintenance, but there is the matter of a weeping water pump...

More to come.
